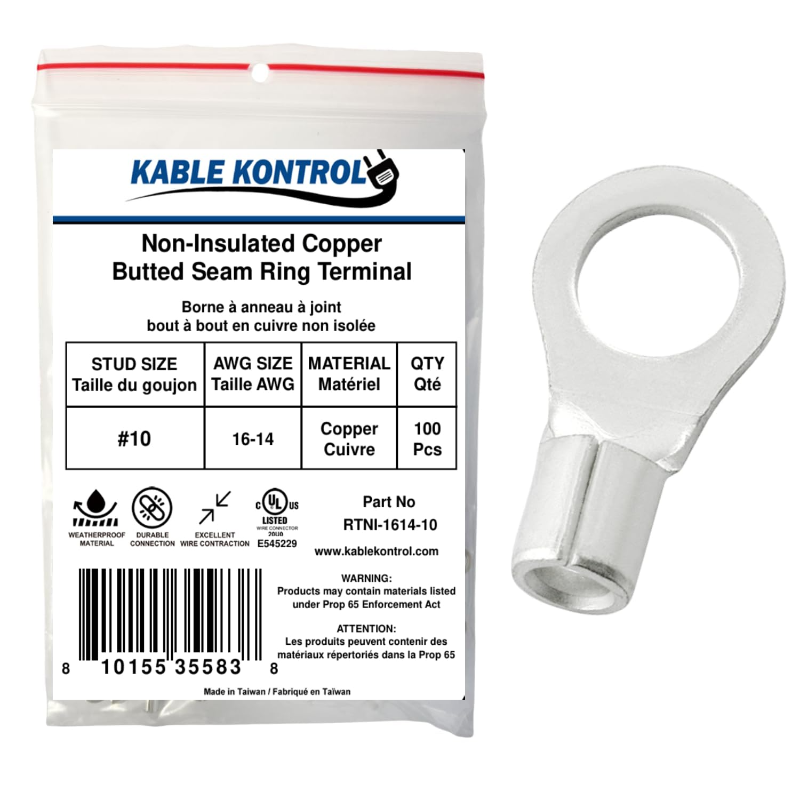

Kable Kontrol® Ring Terminal Connector - Non Insulated - 16-14 AWG - Stud Size - 10 - 100 Pcs

Features

• Safety Certified: UL Listed (E545229) for trusted safety and compliance.
• Pack Quantity – 100 Pcs
• Affordable & Practical: Cost-effective solution for general wiring needs.
• Secure Connections: Ring-shaped design attaches easily to screw or stud-type fittings.
• Durable Build: High-quality copper with a tin-plated finish for corrosion resistance.
• Versatile Applications: Ideal for automotive, marine, and general electrical installations.
• High Performance: Supports up to 600 volts and temperatures up to 105°C (221°F).
• Material: Copper Terminal Connector

• Size AWG: 16 - 14 AWG

Refer to the image in the gallery for the specifications mentioned Below:

• Wire Range - 16 - 14 AWG (1.5 - 2.5 mm2)
• Stud Size - 10
• W - 0.335" (8.5 mm)
• F - 0.291" (7.4 mm)
• L -  0.650" (16.5 mm)
• E - 0.189" (4.8 mm)
• D - 0.161" (4.1 mm)
• D1 - 0.091" (2.3 mm)
• T - 0.031" (0.8 mm)

Description

The Kable Kontrol® Ring Terminal Connector - Non Insulated is a budget-friendly and reliable choice for connecting, mating, or terminating single wires. Its practical ring-shaped design ensures a secure connection to screw or stud-type electrical applications, making it ideal for automotive, marine, and general electrical projects. Crafted from high-quality copper with a corrosion-resistant tin-plated finish, this ring terminal delivers excellent conductivity and long-lasting performance. It is perfect for situations where insulation or special performance features are not required, providing a simple yet effective solution for a wide range of wiring tasks. Built to handle up to 600 volts and withstand temperatures up to 105°C (221°F), this terminal is UL Listed (E545229) for safety and reliability. Choose this economical ring terminal to simplify your electrical connections while maintaining performance and compliance.
