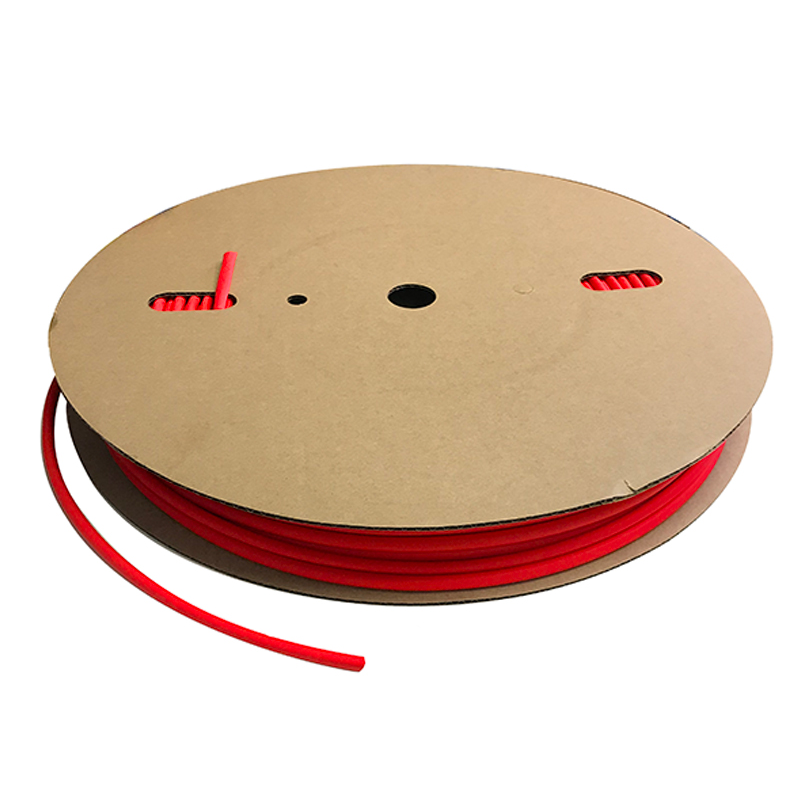

Kable Kontrol® Heat Shrink Tubing - 1/16" ID - 3:1 Ratio - Single Wall - Polyolefin - Flexible - Flame Retardant - Red - 500 Feet

Features

• UL Listed, File E536025
• RoHS Compliant
• Only Black Are UV Resistant
• 3:1 Shrink Ratio (Shrinks to 1/3 its Original Diameter)
• Meets Requirements of AMS-DTL-23053/5 (Formerly MIL-I-23053/5)
• Maximum Continuous Use Temperature 135ºC
• Shrink Temperature of 100°C & Operating Temperature of -55°C To + 135°C
• Crosses to: Sumitomo B2(3X), Raychem RNF-3000, Alpha FIT-321V, Canusa CPX-300, LG GSHS-3635

Description

3:1 Single wall heat shrink tubing is made from a specially formulated, cross-linked polyolefin. It offers excellent electrical, chemical, and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. The flame retardant jacket of 3:1 single wall heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

3:1 heat shrink tubing will slide easily over inline splices and connectors, and shrink down to 33% of its original diameter to fit snugly over any wire, hose or cable management project. it is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish.

Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation

Note: Inside Diameters for Heat Shrink Tubing are measured as ROUND Tube, Not FLAT
