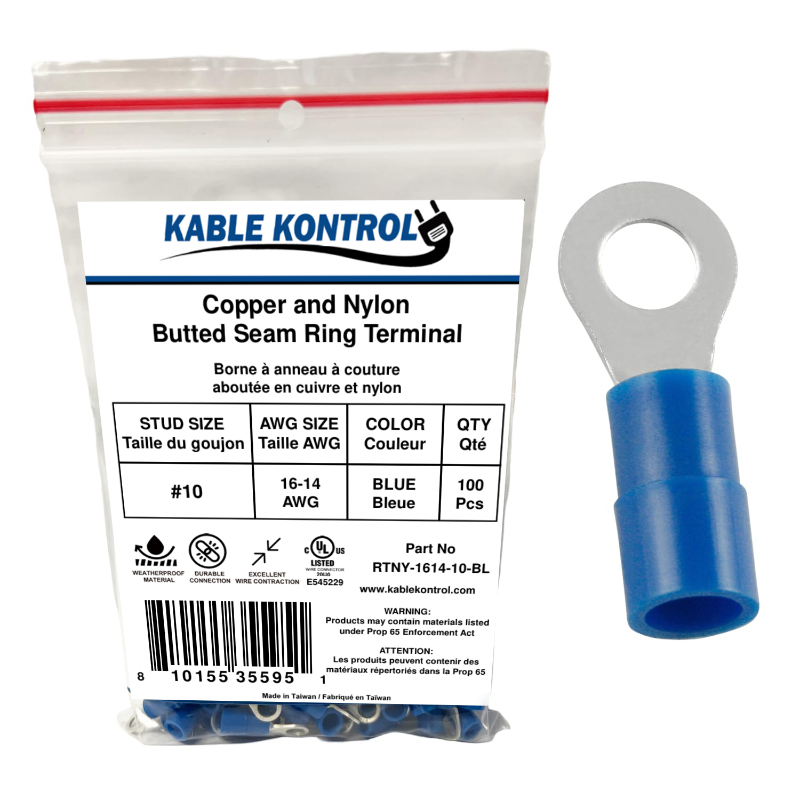

Kable Kontrol® Ring Terminal Connector - Nylon Insulated - 16-14 AWG - Stud Size - 10 - Blue - 100 Pcs

Features

• Certified Safety: UL Listed (E545229) for compliance with electrical safety standards.
• Pack Quantity – 100 Pcs
• Flexible & Heat Resistant: Nylon insulation offers durability and heat resistance during crimping.
• Wire Inspection: Clear nylon material allows for quick visual confirmation of wire connections.
• Strong & Secure Fit: Butted seam barrel resists separation under pressure and stress.
• Simplified Installation: Funnel entry design ensures smooth and hassle-free wire insertion.
• Color-Coded for Convenience: Industry-standard coding for quick and accurate wire range identification.
• High Performance: Supports up to 600 volts and operates effectively at temperatures up to 105°C (221°F).
• Materials: Copper Connector and Nylon Insulation for long-lasting reliability.
• Size AWG: 16 - 14 AWG

Refer to the image in the gallery for the specifications mentioned Below:

• Wire Range - 16 - 14 AWG (1.5 - 2.5 mm2)
• Stud Size - 10
• W - 0.335" (8.5 mm)
• F - 0.307" (7.8 mm)
• L - 0.898" (22.8 mm)
• E - 0.433" (11 mm)
• D - 0.177" (4.5 mm)
• D1 - 0.091" (2.3 mm)
• T - 0.031" (0.8 mm)

Description

The Ring Terminal Connector - Nylon Insulated is a reliable and durable solution for securely connecting, mating, or terminating single wires. Designed with a ring-shaped terminal, this connector easily attaches to screw or stud-type electrical connections, making it perfect for automotive, marine, and general electrical applications. Constructed with a flexible and heat-resistant nylon insulation, this terminal offers superior performance compared to other insulation types. The clear nylon material allows for quick visual inspection of wire connections, ensuring accuracy even after crimping. The molded insulation securely grips the butted seam barrel, which is designed to withstand pressure and operating stress without separating. A funnel entry inside the insulation simplifies wire insertion, while the industry-standard color coding helps identify the appropriate wire range quickly. Rated for up to 600 volts and able to endure temperatures up to 105°C (221°F), this terminal meets rigorous performance and safety standards, including UL Listing (E545229).
