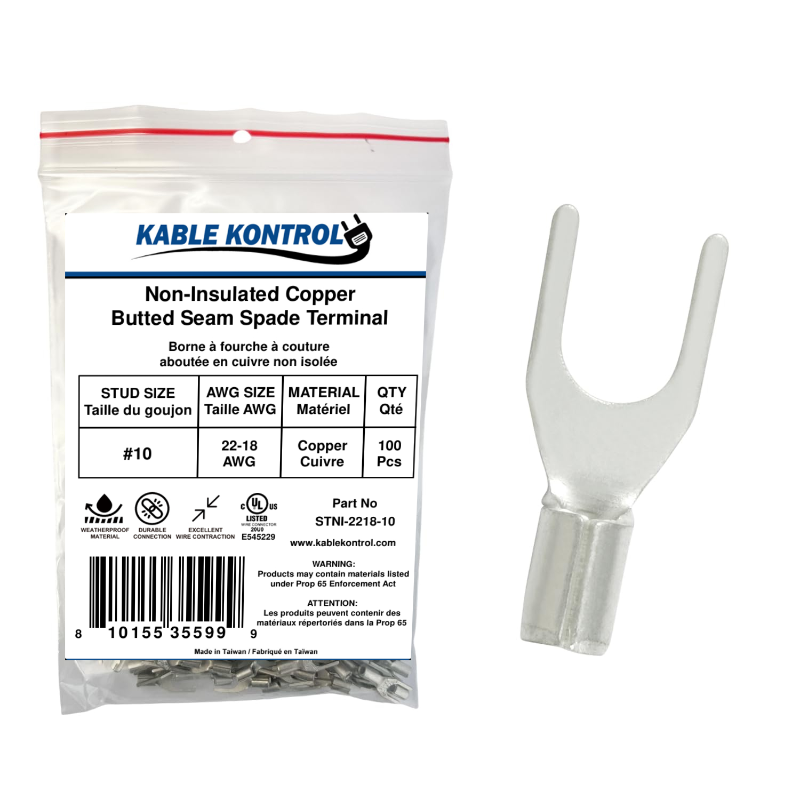

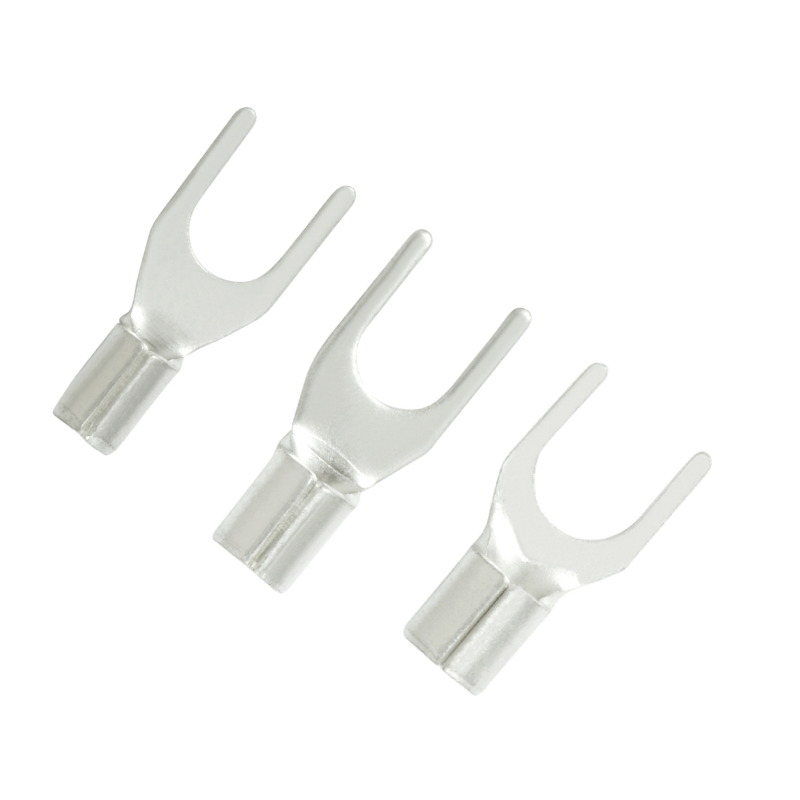

Kable Kontrol® Spade Connector - Electrical Wire Terminal - Male - Non Insulated - 22-18 AWG - Stud Size - 10 - 100 Pcs

Features

• UL Listed (E545229): Meets rigorous safety and performance standards.
• Pack Quantity – 100 Pcs

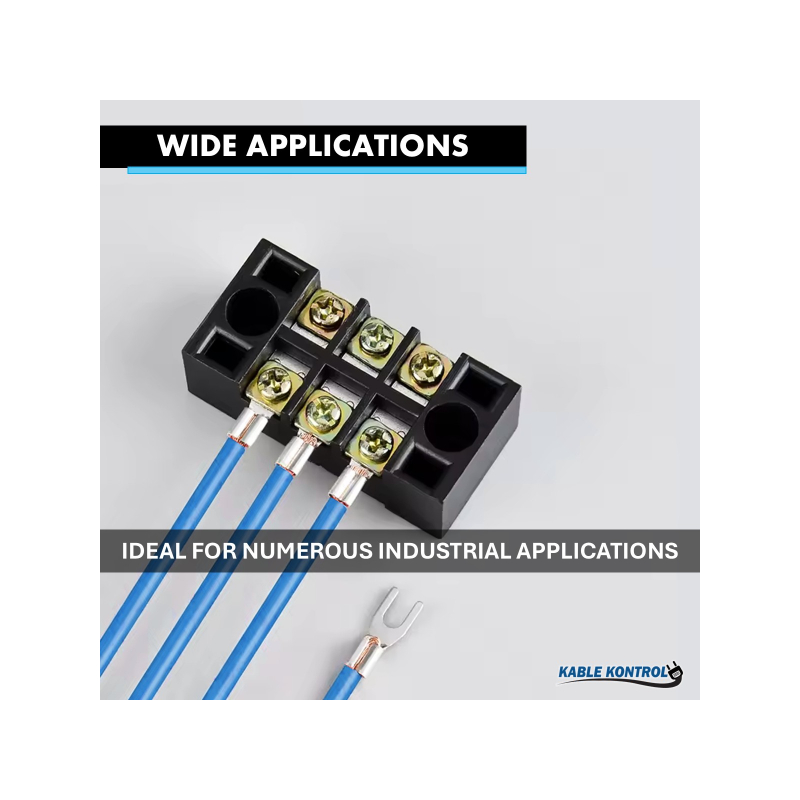

• Versatile Applications: Ideal for automotive, marine, industrial, and residential electrical connections.

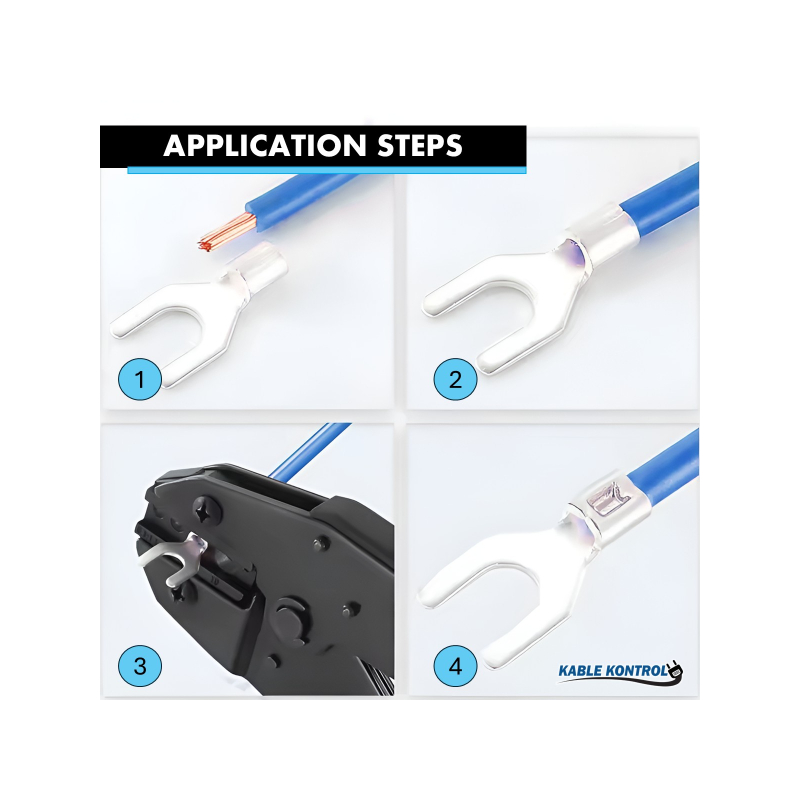

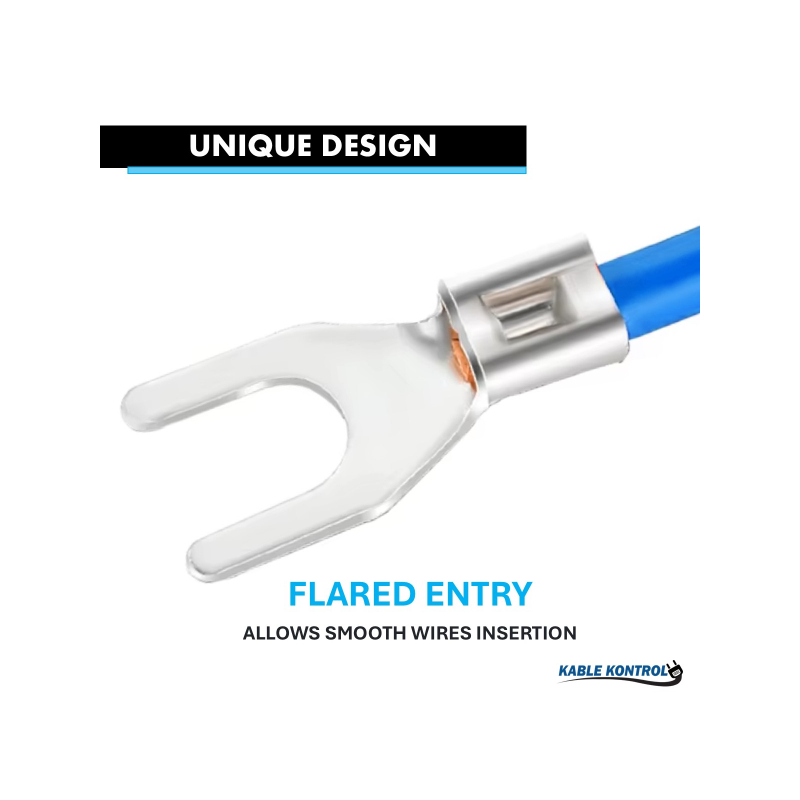

• Open-End Spade Design: Facilitates fast and hassle-free installation and removal.
• Economical Solution: Budget-friendly choice when specialized performance is not necessary.
• Reliable Performance: Supports up to 600 volts, suitable for signs, fixtures, and more.
• Temperature Resilience: Operates effectively at temperatures up to 105°C (221°F).
• Durable Construction: Made from high-quality materials to ensure a long service life.
• Material: Copper Terminal

• Size AWG: 22 - 18 AWG

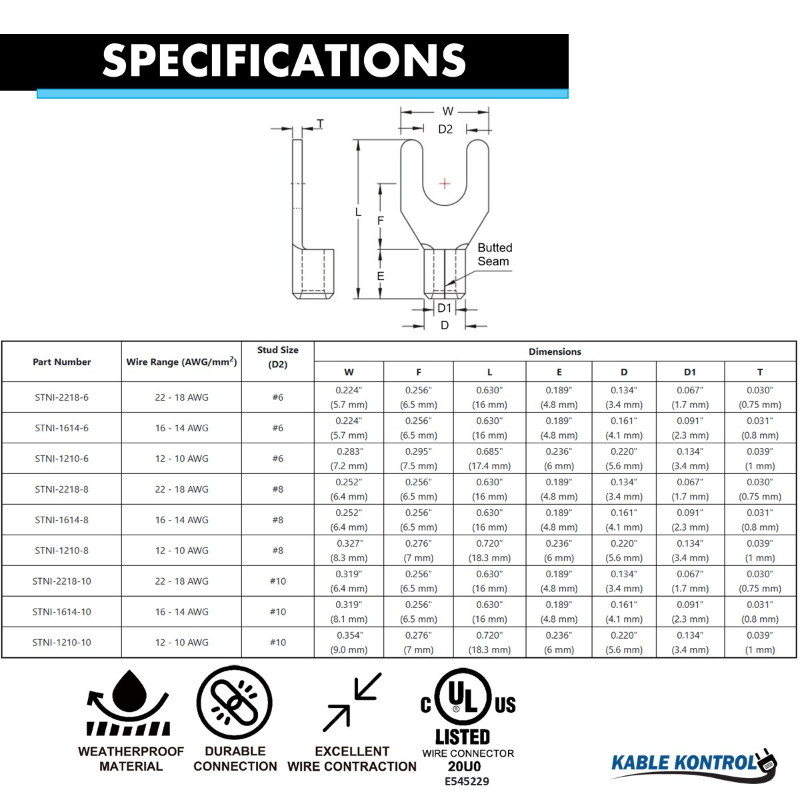

Refer to the image in the gallery for the specifications mentioned Below:

• Wire Range - 22 - 18 AWG
• Stud Size - 10
• W - 0.319" (6.4 mm)
• F - 0.256" (6.5 mm)
• L -  0.630" (16 mm)
• E - 0.189" (4.8 mm)
• D - 0.134" (3.4 mm)
• D1 - 0.067" (1.7 mm)
• T - 0.030" (0.75 mm)

Description

Achieve secure and dependable electrical connections with Kable Kontrol® Spade Male Connector – Non Insulated Electrical Wire Terminal. These versatile terminals are designed to efficiently mate, connect, or terminate single wires while providing a robust connection to screw or stud-type electrical interfaces. Ideal for automotive, marine, and a wide range of electrical applications, these connectors offer an economical and practical solution where specialized performance or installation characteristics are not required.

With a 600-volt maximum rating and the ability to withstand temperatures up to 105°C (221°F), these connectors are well-suited for signs, fixtures, and general-purpose electrical installations. Their open-end design allows for quick and easy installation and removal, saving time during maintenance and upgrades. UL Listed (E545229) certification ensures compliance with safety and quality standards, making them a trusted choice for professional and DIY projects.
