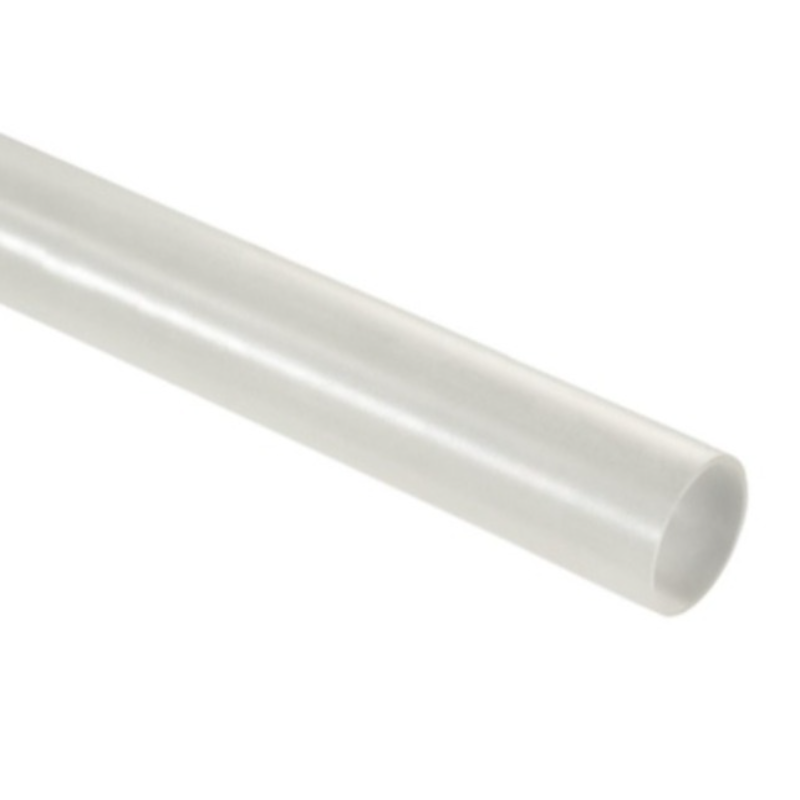

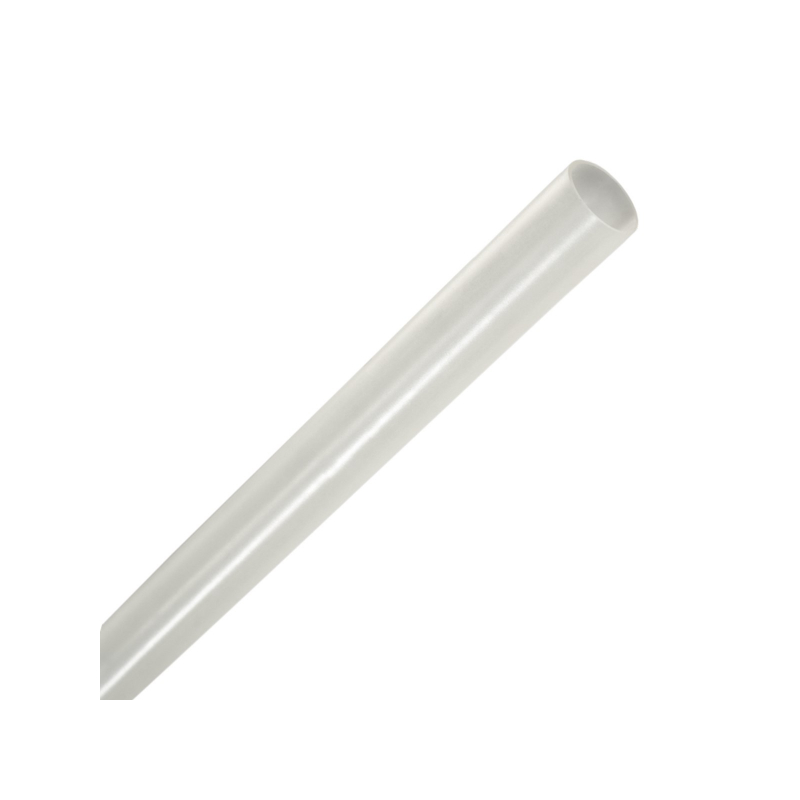

(PVDF) Kynar Heat Shrink Tubing - Single Wall - 2:1 Ratio

(PVDF) Kynar Heat Shrink Tubing 2:1 Features

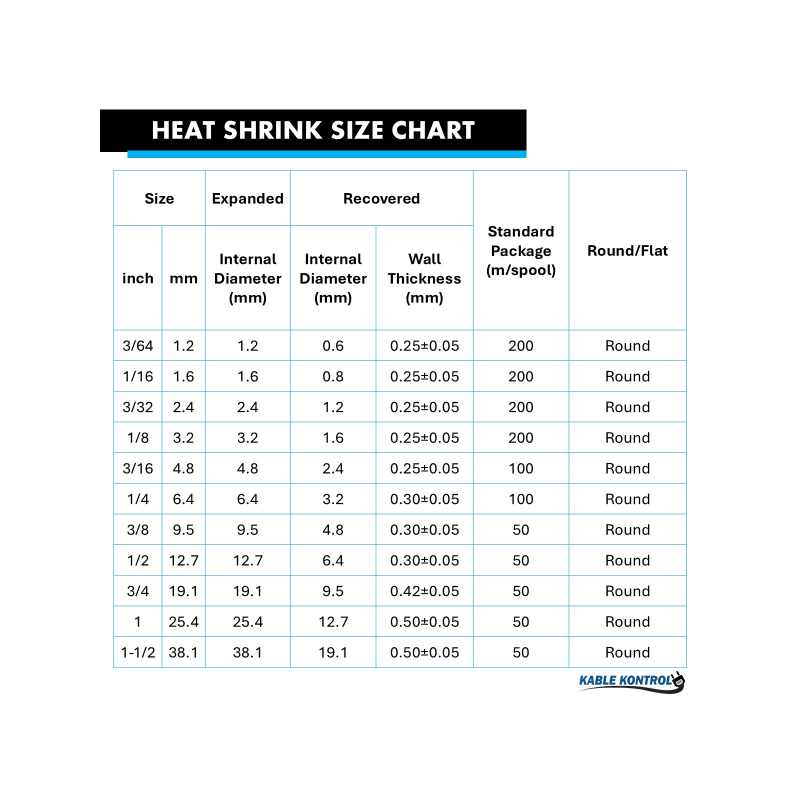

• Available Inside Diameter: 1/16” To 3/4” Sizes

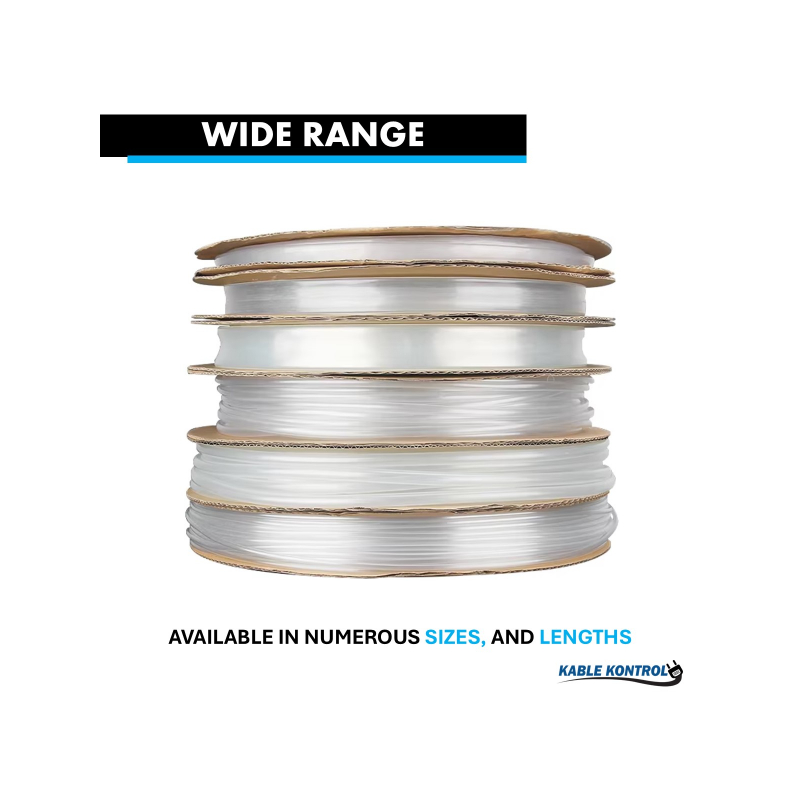

• Sold in 4 Feet Sticks & Full Spool Lengths

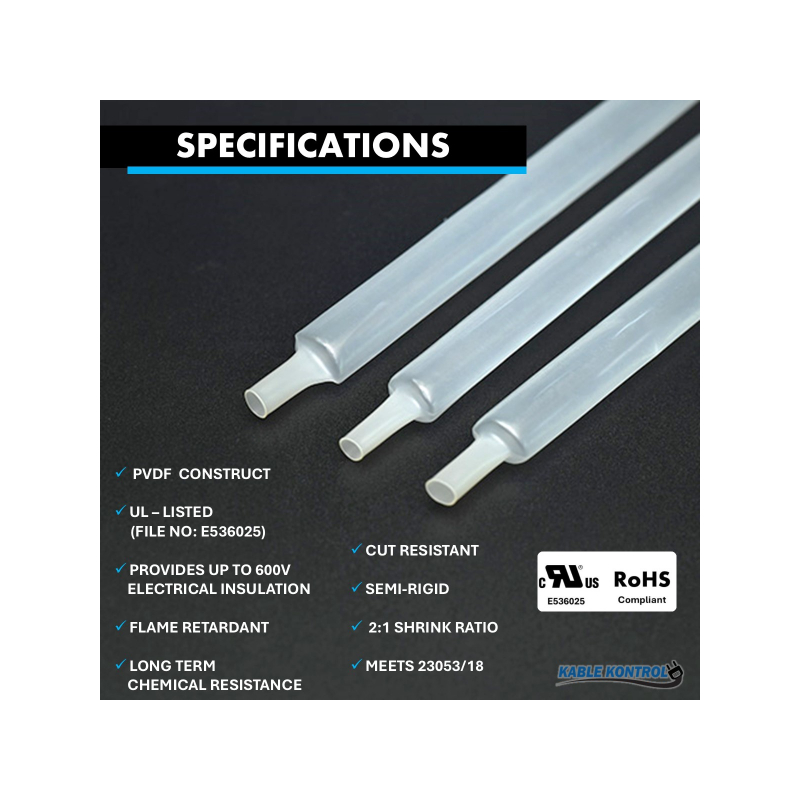

• RoHS Compliant & UL Listed: Meets stringent environmental and safety standards with UL File No. E536025 certification.
• Durable Construction: Resistant to diesel, hydraulic fluids, and chemicals, semi-rigid tubing, providing long-term reliability in harsh environments.
• MIL Spec Compliance: Conforms to military standard M23053/18, ensuring high quality and dependability.
• Flame Retardant & Abrasion Resistant: Offers excellent protection against physical wear and fire hazards.
• High-Performance Material: Made from transparent polyvinylidene fluoride (PVDF) for superior strength and chemical resistance.
• Wide Operating Temperature Range: Functions effectively between -67℉ to 347℉ (-55℃ to 175℃), suitable for diverse applications.
• Voltage Range: Provides up to 600V Electrical Insulation
• Thin-Wall Design: Minimizes bulk while ensuring reliable insulation and protection.
• Transparent for Visual Monitoring: Allows easy inspection of wires, cables, and components without removal.
• Versatile Applications: Ideal for electrical insulation, wire bundling, color coding, and strain relief in electronic, automotive, and military uses.

(PVDF) Kynar Heat Shrink Tubing 2:1 Description

Kable Kontrol® Kynar Heat Shrink Tubing is engineered to deliver exceptional insulation and protection in even the most demanding environments. Made from high-quality polyvinylidene fluoride (PVDF), this transparent, thin-wall tubing is perfect for applications requiring visual inspection of wires, cables, or components.

This tubing is both RoHS compliant and UL Listed (File No. E536025), ensuring it meets the highest environmental and safety standards. Its robust design offers superior resistance to diesel, hydraulic fluids, chemicals, and abrasion, making it ideal for harsh industrial, automotive, and military settings. The flame-retardant properties provide added safety, while the thin-wall construction ensures minimal bulk without compromising durability.

With a wide operating temperature range of -67℉ to 347℉ (-55℃ to 175℃) and compliance with MIL Spec M23053/18, Kynar Heat Shrink Tubing is versatile enough for electrical insulation, wire bundling, color coding, and strain relief. Whether you're working on electronic systems, automotive wiring, or military-grade projects, this tubing is designed to provide long-lasting performance and reliability.
